Purpose:

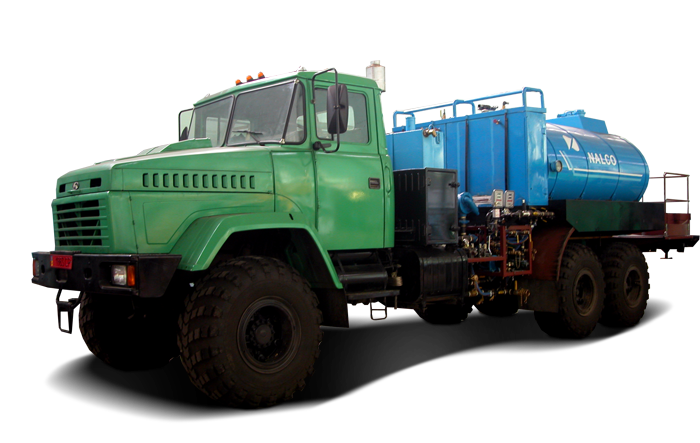

Well treatment truck AKhOS –7,5 is designed for pumping the mixture of chemical agents with water into well. Treatment of wells with chemical agents allows increasing the overhaul time of the well. During treatment tubes are cleaned from dirt and slag, their corrosion resistance arises.
Operations performed:
- mobile moving from well to well;
- pumping the mixture of chemical agents with water into the well.
Design features:
- possibility of manufacturing the truck on Ural, KrAZ, KAMAZ chassis.
Technical specifications:
|
Assembling base - chassis
|
URAL - 4320
|
KAMAZ - 53228
|
KrAZ - 63221
|
|
Rated capacity of water tank at temperature 20 °С, m3 (l)
|
5(5000)
|
6(6000)
|
7,5 (7500)
|
|
Chemicals tank: capacity, m3 (l), up to quantity, pcs
|
0,55(550), 2...5
|
||
|
Length
|
9000
|
8500
|
10100
|
|
Width
|
2500
|
2500
|
2750
|
|
Height
|
3500
|
3500
|
3500
|
|
Total weight of truck, kg, not exceeding
|
21000
|
24000
|
29175
|
|
Total weight distribution, kg, not exceeding
|
|||
|
- on front axle
|
5000
|
6000
|
7175
|
|
- on rear bogie
|
16000
|
18000
|
22000
|
|
Pumps drive
|
Hydraulic, from hydraulic pump connected to power take-off
|
||
|
Pressure in hydraulic system, MPa
|
7,5 (75)
|
||
|
Feed of mixture to the well at working pressure 1.5 MPa, m3/sec (l/min), not less than
|
0,005 (300)
|
||
The truck complies with the requirements of Safety Regulations in RK and RF and has compliance certificates and application permit ST АО 30482858-023-2009. |
|||
