Purpose:
Repair of oil & gas wells.
Operations performed:
- mobile moving from well to well;
- assembly and disassembly of control head equipment;
- round trip including those with sucker rods and tubing;
- accident elimination.
Design features:
- single-drum winch with one single-disc pneumatic friction clutch;
- upper section of derrick is moved up by hydraulic winch from the remote control console;
- device for fixing hook block and protection of the derrick from damage when moving the rig;
- double-action hydraulic jacks for leveling the rig.
Technical specifications
|
Rated load ob hook, kN (tf)
|
392 (40)
|
|
Maximum allowable load on hook, kN (tf)
|
490,5 (50)
|
|
Assembly-transportation base of the rig:
|
|
|

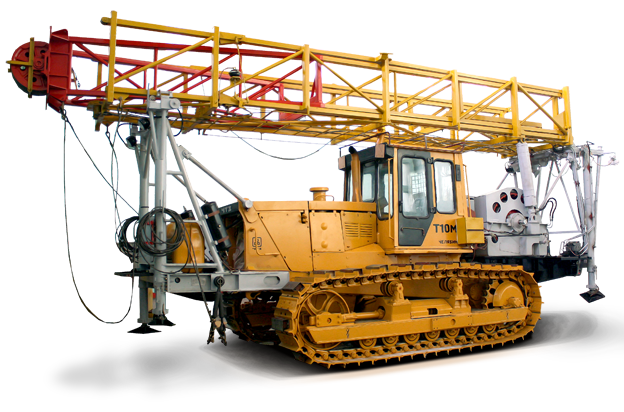

- tractor
|
Т-10М, Т10МB (swamp)
|
|
Machinery drive
|
From tractor engine
|
|
Winch:
|
Single drum with disc pneumatic clutch
|
| - number of gears |
4, reverse - 2
|
|
- maximum traction force, kN (tf)
|
83,4 (8,5)
|
|
- hook block lifting speed, m/s
|
0,2…1,18
|
|
- winch brake
|
Double-belt-spot-type with pedal pneu-matic and manual mechanical control
|
|
Derrick:
|
Double-section, telescopic with open front face
|
| - height from earth level to crown block axis, m |
18
|
|
- derrick inclination angle, deg.
|
4 ° 50'
|
|
- distance from the plane of trailing feet to hole axis, mm
|
1400
|
|
Hook block lifting height, m
|
14
|
|
Hook block:
|
Single-axle with triplex hook
|
|
Overload capacity:
|
|
|
- mechanical
|
For switching-off the winch and switch-ing-on the brakes on overloading
|
|
Protector (limiter of hook block lift)
|
Electropneumatic
|
|
Hydraulic system:
|
|
|
- number of pumps
|
1
|
|
- working pressures range, MPa
|
16-21
|
|
Leveling jacks - number of items, pcs.
|
4
|
|
Pneumatic system:
|
Power supply from compressor driven by tractor engine
|
|
- working pressure, (kgf/cm2)
|
7
|
|
Illumination of derrick, rig equipment and working places:
|
Explosion-proof construction, from on-board net of the tractor
|
|
Rig overall dimensions in transit condition, mm
|
10080x2800x4400 |
|
Weight in transit condition, kg
|
26000
|
|
Options – supplementary equipment supplied on demand in complete set with lifting rig
|
|
|
Wrench APR-2GP:
|
|
|
-drive
|
hydraulic
|
|
-working range – tube diameters, mm
|
48, 60, 73, 89 |
|
-maximum torque, kN•m (kgf•m)
|
3(300) |
Lifting rig complies with the requirements of Safety Regulations in oil and gas industries, set in the Republic of Kazakhstan, ST АО 30482858-013-2008, as well as the requirements set by GOST 12.2.088-83, GOST 12.2.125-91, GOST 4938-78, GOST 28113-89.
