Purpose:

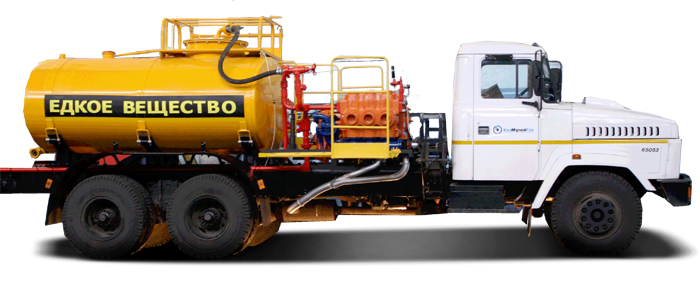

The truck is designed for acid treatment of wells, transporting and charging of acid mixtures used for acid treatment of well bottom zone.
Technical specifications
|
Assembly base -chassis
|
KRAZ 65053
|
KAMAZ 43118 |
| High pressure pump |
Three-piston
|
|
|
Piston stripping, mm
|
130
|
|
|
Piston diameter, mm
|
100 125
|
|
|
Useful hydraulic power, kW (h.p.)
|
132 (180)
|
|
|
Highest charging pressure, MPa
|
50 32
|
|
|
Highest ideal feeding, h/p
|
11,5 18,0
|
|
|
High pressure pump drive
|
From engine chassis through power takeoff, drive shaft and reducer | From engine through power takeoff, drive shaft |
|
Manifold:
|
||
|
Receiving line flow section diameter, mm
|
100
|
|
|
Charging line flow section diameter, mm
|
50
|
|
|
Auxiliary (dismountable) pipeline:
|
||
|
- conditional passage, mm
|
50
|
|
|
- total length, m
|
20
|
|
|
Tank volume, m3
|
7,0
|
|
|
Transporting and charging fluid: solution of inhibited hydrochloric acid (concentration 8-35%), and in mixture with acids: etching acid (up to 5% of hydrochloric acid volume) and acetic acid (up to 2% of solution volume) with temperature no more than 90 С
|
||
|
Rig control
|
From truck cabin
|
|
| Overall dimensions, not exceeding, mm | ||
|
- length
|
9600
|
9000 |
|
- width
|
2550
|
2550 |
|
- height
|
3500
|
3600 |
|
Maximum weight, kg
|
15000
|
20750 |
