Purpose:

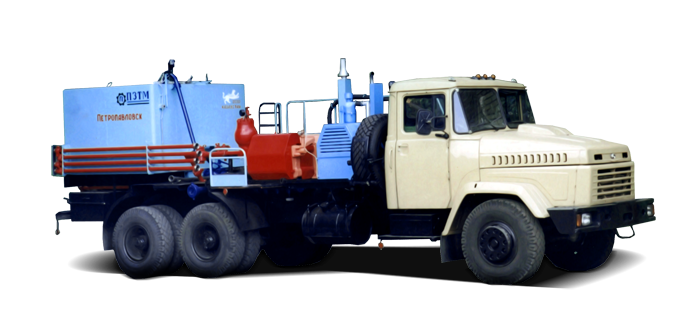

The truck is designed for pumping various fluid mediums during well cementation, and for other
washover-squeezing works performed during construction, development and repair of wells.
Operations performed:
- mobile moving from well to well;
- washover-squeezing works at the well;
- well cementation;
- auxiliary operations such as transfer of different fluids and liquid solutions.
Design features:
possibility of manufacturing the truck on KAMAZ, KRAZ chassis.
Technical specifications
|
Assembly base - chassis
|
KRAZ 65053
|
KAMAZ 43118 |
|
High pressure pump
|
triplex pump
|
|
|
Useful capacity, kWt (h.p.)
|
120(163)
|
|
|
Maximum pressure, MPa
(for piston Ø100 mm, Ø125 mm, Ø140 mm) |
50 / 30 / 24
|
|
|
Maximum delivery, dm3/sec
(for piston Ø100 mm, Ø125 mm, Ø140 mm) |
11,14 / 17,4 / 22,6
|
|
|
Water-feeding pump
|
Centrifugal, multistage, sectional TsNS 38-154 *2
|
|
|
Water-feeding pump pressure, (MPa, not less than)
|
1,0 | |
| Water-feeding pump delivery, (dm3/s, not less than) | 10,5 | |
|
Water-feeding pump drive
|
From auxiliary engine D120*2
|
|
|
Capacity of measuring tank, m3
|
6
|
|
|
Capacity of cementing grout tank, (m3, not less than)
|
0,25
|
|
|
Internal diameters of manifold tubing, mm
|
||
|
suction line
|
100
|
|
|
pressure line
|
50
|
|
| measuring tank capacity, m3 | 6 | |
| cement grout tank capacity, m3, not less than | 0,25 | |
| Overall dimensions, mm | ||
|
- length
|
10500
|
8800
|
|
- width
|
2550
|
2550
|
|
- height
|
3500
|
3400
|
|
*1 Total weight of the rig when moving, not exceeding, kg
|
15800
|
15000
|
|
*1 Special truck moves only with empty measuring tank.
|
||
|
*2 By the Client’s demand parameter can be changed.
|
||
