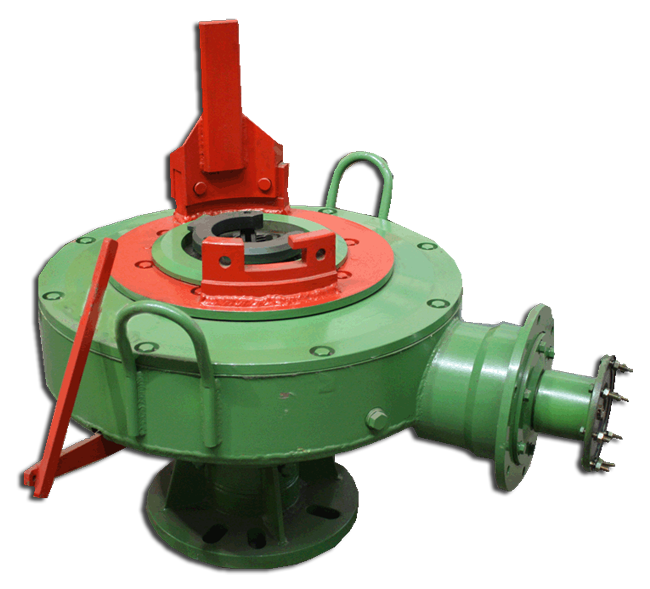

Purpose: Mechanical drive rotor 9UPA.51.00.000 is designed for drilling operations (cementing plug drilling out), for mechanical screwing and loosening of oil-well tubes and also for pipe string re-tention. |
|
|
Technical specifications
|
|
|
Drive
|
Mechanical
|
|
Table opening, mm
|
142
|
|
Load capacity, tons, not less
|
500 (50)
|
|
Table rotations per minute, not exceeding
|
160
|
|
Max. torque consumption, N |m
|
12000
|
|
Guide well tube square side, mm
|
80
|
|
Slip hanger lifting
|
Manual, lever
|
| Slip hanger for tubes with diameter, mm |
60,73,89,102, 114
|
|
Rotor weight, kg
|
750
|
