Purpose:

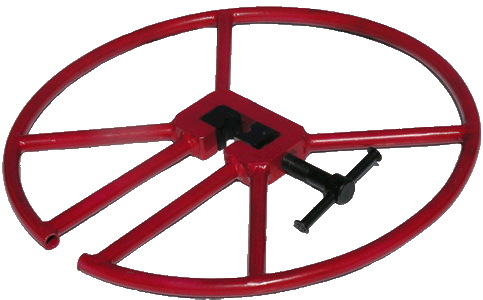

Circular lowering iron KShK is designed for unscrewing of rods by fastened pump piston.
Technical specifications
|
Rod diameter, mm
|
12, 16, 19, 22, 25
|
||
|
Outline diameter of lowering iron, mm
|
550
|
||
|
Weight, kg
|
6,8
|
|
Purpose: KShR tongs are designed for spinning-up and uncoupling of threaded joints on sucker rods with nominal diameters: 16, 19, 22 and 25 mm. |
|||
|
Technical specifications
|
|||
|
KShR.000
|
KShR.000-01
|
KShR.000-02
|
|
|
Sucker rod nominal diameter, mm
|
16
|
19, 22
|
25
|
|
Maximum torque, kN∙m, not exceeding
|
1,0
|
1,0
|
1,0
|
|
Overall dimensions, mm
|
490х106х30
|
710х106х33
|
710х106х38
|
|
Weight, kg
|
3,1
|
4,65
|
4,7
|
