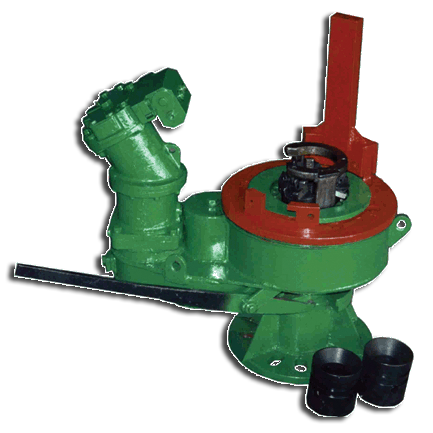

Purpose: Rotary RGP-140 is designed for performing boring works (drilling-out of cementing jams), and also for mechanical spinning-up and uncoupling of drilling pipes and tubing, keeping pipe string suspended. |
|
|
Technical specifications
|
|
|
Hydraulic rotor capacity, kW
|
60
|
|
Slip hanger capacity, t
|
60
|
|
Rotary table rotation - continuously variable control, rpm
|
3....75
|
|
Change of rotation direction is performed by the rig hydraulic control valve
|
|
|
Table opening diameter, mm
|
140
|
|
Slip hanger for pipes, mm
|
60; 73; 89
|
|
Torque, Nm
|
7270...15 000
|
|
Weight, kg
|
512
|
|
Overall dimensions, mm
|
930 х 940 х 620
|
