Purpose:

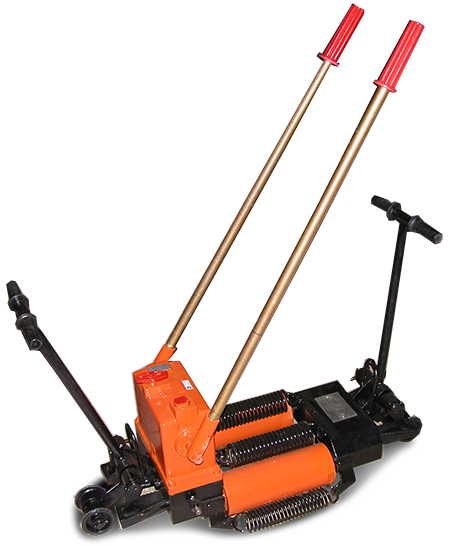

Hydraulic accelerator is designed for longitudinal shifting of rails and restoration of normal clearances between rails. It is applied on broad railway gauges laid of R50, R65, R75 rails according to GOST 24182.
Technical specifications
Maximum spreading effort, Kn
303
Spreading cylinder piston diameter, mm
80
Quantity of cylinders, pcs
2
Pressure in hydraulic system, MPa
- working pressure
- maximum pressure

0....30
33
Maximum separation rate, mm

- without intercept
150
- with intercept
300
Pump handle effort at working pressure, N, not exceeding
230
Working fluid
AU, VMGZ, MGE-10A
Weight, kg
78
Overall dimensions, mm, not less than

- length 950
- width 370
- height (without handle) 350
